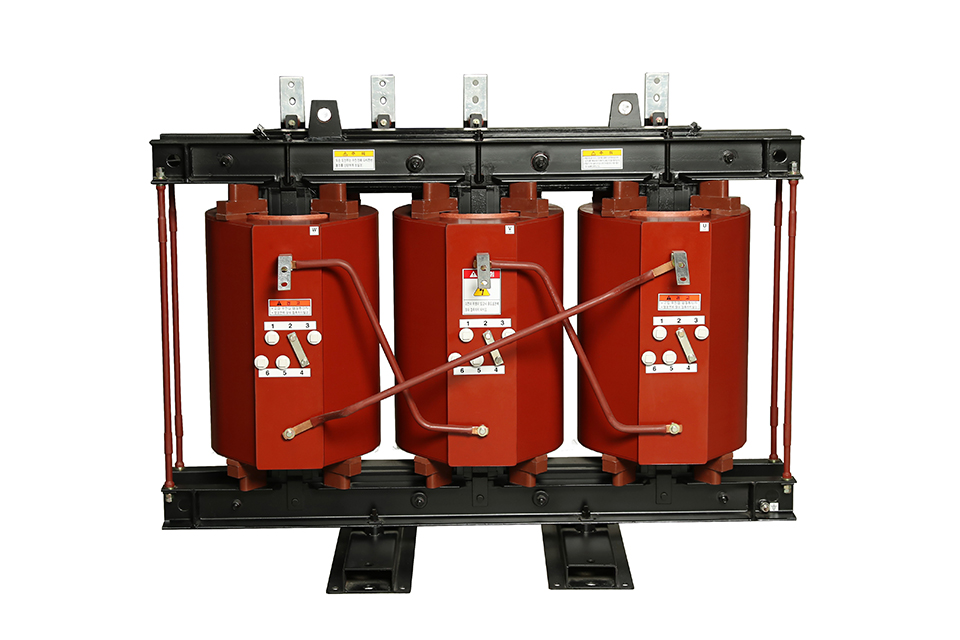

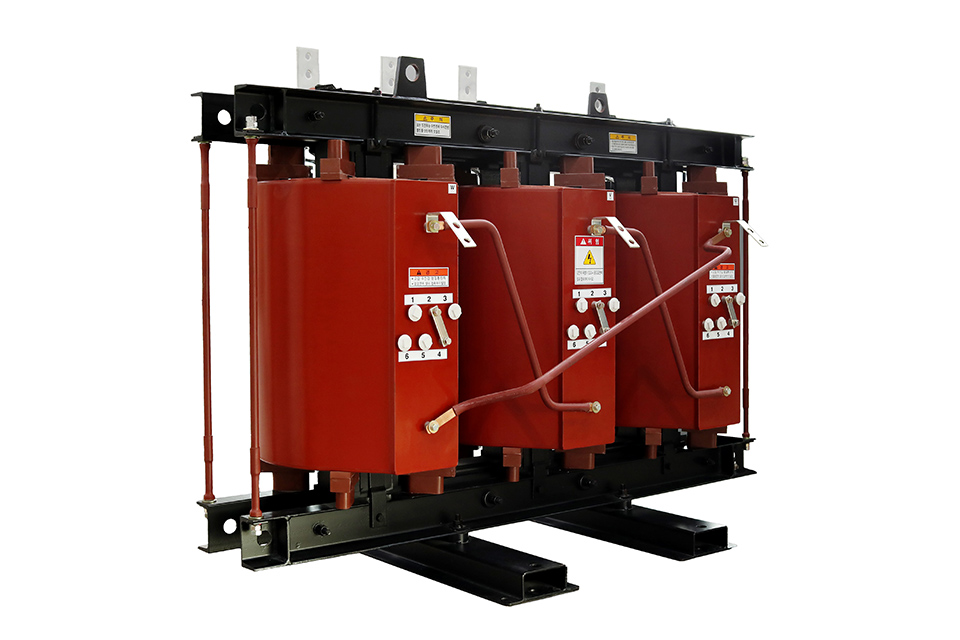

Product Overview
These custom-engineered Cast Resin transformers are designed for various industrial and commercial applications, providing a reliable and efficient power solution.
Description
Cast Resin transformers are renowned for their low noise operation and compact footprint, making them ideal for installations closer to electrical loads. This proximity significantly reduces low-voltage cabling costs compared to traditional oil-immersed transformers.
Beyond cost savings, these transformers are engineered for minimal maintenance, saving both time and operational expenses. Their robust design ensures a reliable and efficient power supply for diverse environments.
Features
- Fire-resistant & explosion-proof
- Convenient maintenance
- Great environmental benefits
- Low noise and compact size
- Available in both SiFe and Amorphous Core
Specifications
| AttributeValue |
| FREQUENCY | 50/60Hz |
| HV | Up to 36,000V |
| LV | 600V and Below |
| IMPEDANCE | 4.0 – 12.5% |
| RATING | 50 – 10,000kVA |
| Core Design | Core Form |
| MAX. BIL | 170kV BIL |
| Insulation | B/F |
| Standards | IEEE / IEC / NEMA |
| Tank Type | IP2X / IP3X / IP4X |
Basic Components
- HV/LV Bushings
- Grounding terminal
- Lifting Devices
- Anti-vibration pad
- De-energized tap changer
- Digital temp. indicator
