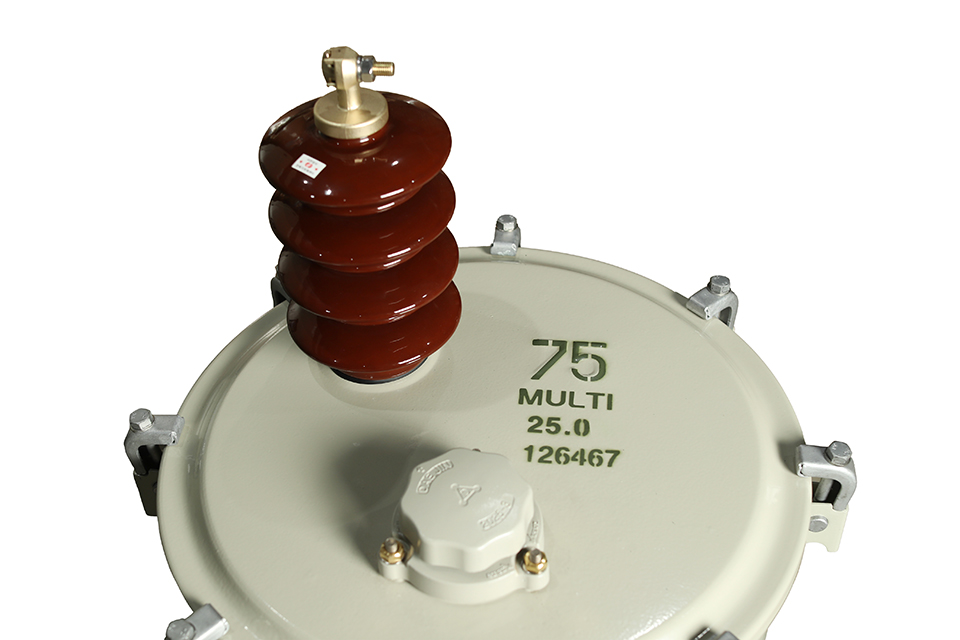

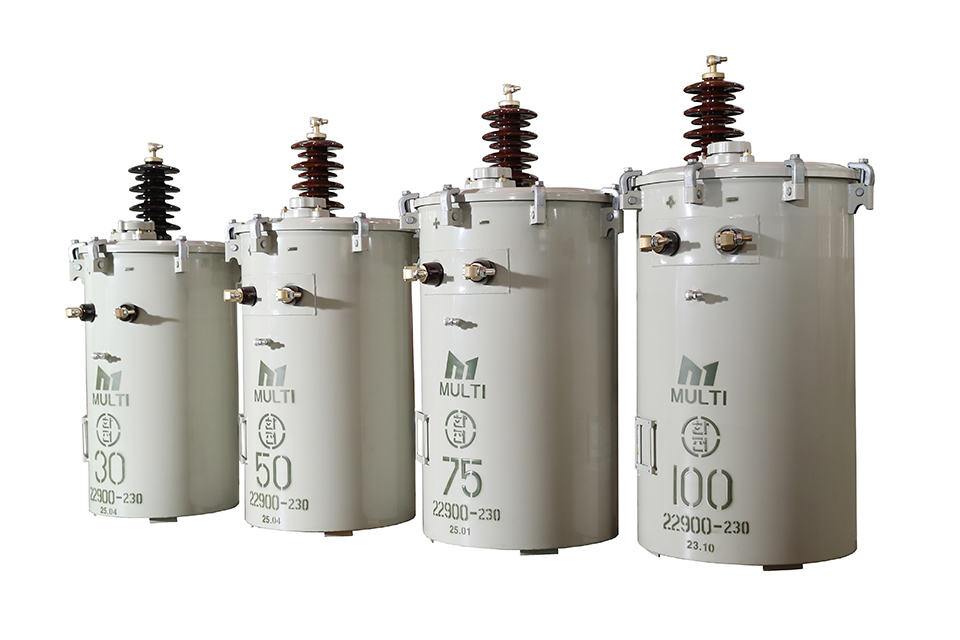

Product Overview
Polemount transformers are expertly designed and supported by engineers, fully complying with industry standards. A wide range of standards and optional accessories are available for selection. These transformers are custom-manufactured to meet specific customer requirements, ensuring optimal performance and integration.
Key Features
- High reliability
- Advanced manufacturing and testing facility
- Proven technology
- Available in both SiFe and Amorphous Core
Specifications
| ParameterValue |
| FREQUENCY | 50/60Hz |
| HV (High Voltage) | Up to 34,500GrdY / 19,920V |
| LV (Low Voltage) | 600V and Below |
| IMPEDANCE | 1.0 – 5.75% |
| RATING | 10 – 500kVA |
| Core Design | Core / Shell Form |
| MAX. BIL (Basic Impulse Level) | 150kV BIL |
| Insulation | Mineral / Natural Ester |
| Standards | IEEE / IEC / NEMA |
| Tank Type | Mild Steel / Stainless Steel |
Basic Components
- HV/LV Bushings
- Pressure Relief Device
- Lifting Devices
- Ground Connectors
- Support Lugs
Optional Accessories
- Wildlife Guard
- De-Energized Tap Changer
- Surge Arrester
- Dual-voltage Switch
- LV Circuit Breaker
- MagMex Interrupter Tap Changer
