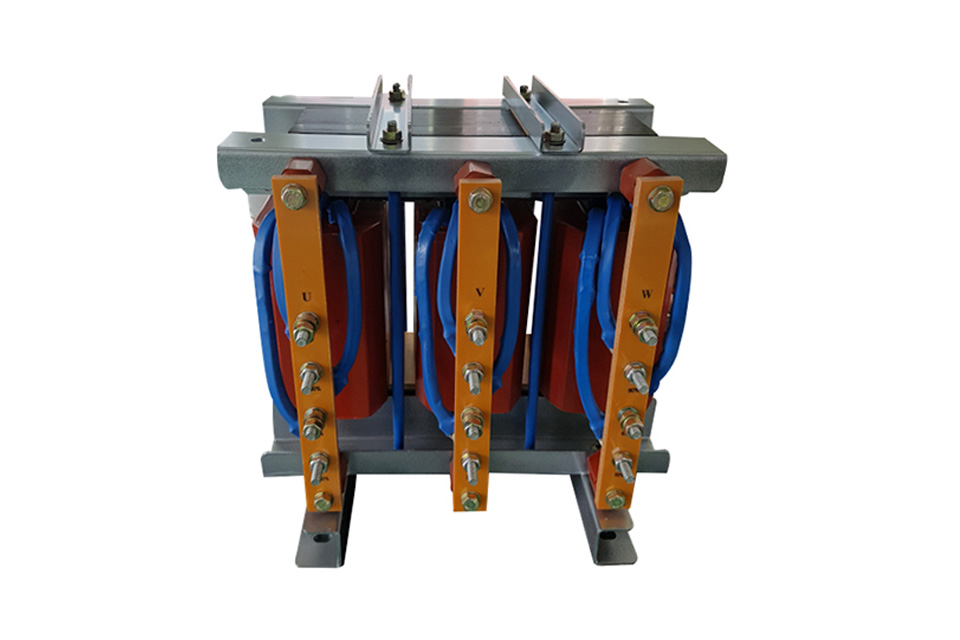

DESCRIPTION
AC/DC reactors are designed to minimize power losses caused by harmonics and filtering. Engineered with advanced insulation systems and precision manufacturing, these reactors offer high efficiency and reliability for various industrial applications. Ideal for use in harmonic filtering, motor drive systems, and DC link stabilization, these reactors are available in various insulation classes and cooling methods to meet diverse operational demands.
FEATURES
- High-efficiency design for harmonic filtering
- Loss reduction in AC/DC drive systems
- Suitable for both AC and DC applications
- Compact and lightweight construction
- Available in insulation classes B, F, and H
- Air Natural (AN) / Air Forced (AF) cooling options
SPECIFICATIONS
- Rated Capacity: 2MVA
- Rated Voltage: 6.6kV
- Frequency: 50Hz / 60Hz
- Phase: Three-phase
- Insulation Class: B / F / H
- Cooling Method: AN / AF
CHARACTERISTICS & DIMENSIONS
(Three Phase 220V, 380V, 440V / 60Hz / 6% Impedance)
Efficiency (η), Reactance (ε), and Current Ratio (I/o) values are available upon request.
| Capacity (kVAR)η (%)ε (%)I/o (%)Dimensions (mm)Total Weight (kg) |
| 15 | – | – | – | 250 × 270 × 280 | 35 |
| 120 | – | – | – | 270 × 280 × 190 | 38 |
| 30 | – | – | – | 280 × 280 × 280 | 44 |
| 50 | – | – | – | 310 × 280 × 350 | 62 |
| 75 | – | – | – | 310 × 310 × 350 | 72 |
| 100 | – | – | – | 340 × 320 × 370 | 86 |
| 150 | – | – | – | 370 × 320 × 390 | 107 |
| 200 | – | – | – | 370 × 340 × 390 | 119 |
