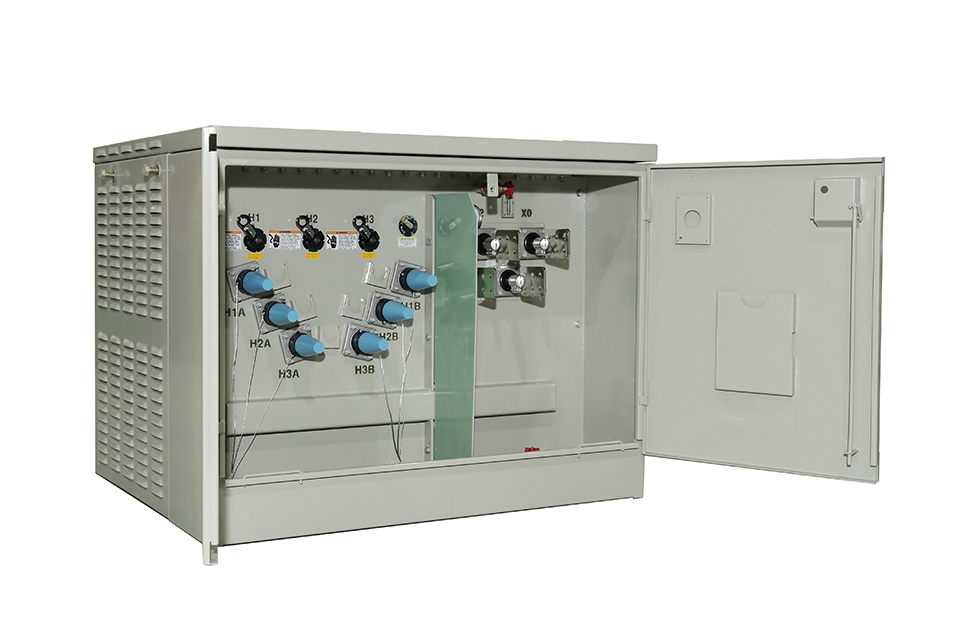

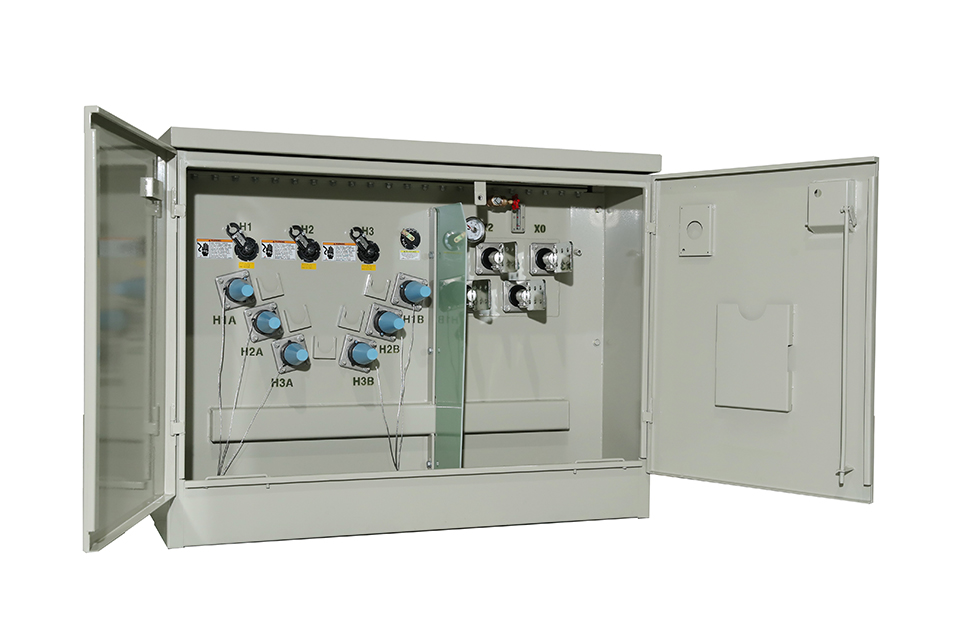

Pad-Mounted Transformers are designed for seamless integration into urban and residential environments where space is limited, safety is critical, and aesthetics matter. Available in both single-phase (1PH) and three-phase (3PH) configurations, these transformers deliver dependable performance with compact installation footprints.
FEATURES
- High reliability
- Insulated with Mineral oil or Natural ester fluid
- Reduced installation space
- Various optional accessories are available
- Available in both SiFe and Amorphous Core
SPECIFICATIONS
| ParameterValue |
| FREQUENCY | 50/60Hz |
| HV | Up to 34,500GrdY / 19,920V |
| LV | 600V and Below |
| IMPEDANCE | 1.0 ~ 5.75% | 2.7 ~ 5.75% |
| RATING | 10 ~ 250kVA | 45 ~ 500kVA |
| Core Design | Core / Shell Form |
| MAX. BIL | 150kV BIL |
| Insulation | Mineral / Natural Ester |
| Standards | IEEE / IEC / NEMA |
| Tank Type | Mild Steel / Stainless Steel |
Basic Components
- HV/LV Bushings
- Pressure Relief Device
- Lifting Devices
- Ground Connectors
- Parking stand
Optional Components
- HV Bushing Insert
- LV Terminals
- De-Energized Tap Changer
- Oil Level Gauge
- Oil Temperature Indicator
- Fuse Assembly
- Dual-voltage Switch
- Load Breaker Switch
- Tap Changer
